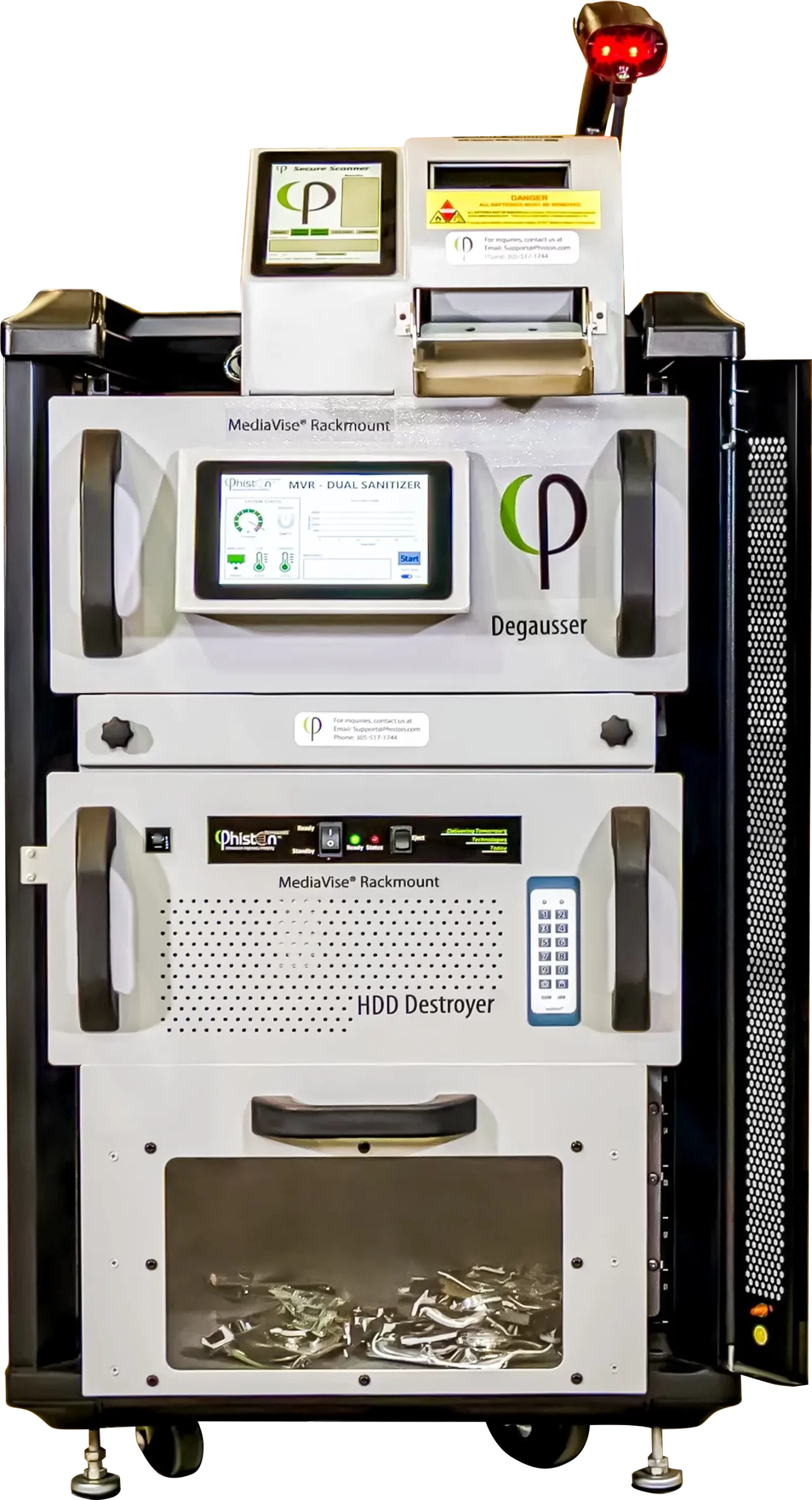

MediaVise® Rackmount Dual Sanitizer

Product

MediaVise® Rackmount Dual Sanitizer

Product description ▼

The MediaVise® Rackmount Dual Sanitizer, or (MVR-DS) for short, is an innovative 2-in-1 hard drive destruction solution.

The MVR-DS is a degausser and hard drive crusher in one! This device is rack-mounted, compact, and portable for offices and data centers.

The Degausser uses a minimum magnetic field of 2 Tesla to degauss the hard drive. But degaussing alone may not be fully effective, especially on newer drive technologies in the market today.

After being degaussed, the drive is destroyed by our patented MediaVise crushing system. Our proprietary hydraulic system applies a powerful 20 tons of force.

Media is fully sanitized and destroyed in less than 25 seconds.

Compliance ▼

Global Safety and EMC Standards
Global Environmental Requirements
GMA, NIOSH, and OSHA workplace compliance.

Key Features & Benefits ▼

Full degauss within 15 sec. thru-put (with fast charging)
Magnetic field with a minimum of 2.0 Tesa
Never any need to calibrate
Can be set on mobile unit or fixed server rack
Locking Drawer to collect and securely store destroyed media
Fully automated for ease of use and safety
Optional Security Scanner for scanning and logging of hard drive data

Technical Specs

Product Name and Model

MediaVise® Rackmount Dual Sanitizer (MVR-DS)

Dimensions

MVR Degausser: 9” (229 mm) x 19” (483 mm) x 26” (660 mm) (HxWxL)

MVR HDD Destroyer: 9” (229 mm) x 19” (483 mm) x 19” (483 mm) (HxWxL)

Occupies 14-17 EIA standard rack unit spaces as a Dual Sanitizer

Weight (excludes packing and crating)

MVR Degausser: 125 lbs. (57 kg)

MVR-HDD Destroyer – 110-volt: 160 lbs. (72.5 kg)

MVR-HDD Destroyer – 220/240 volt: 180 lbs. (82 kg)

Phi-S Secure Scanner (optional): 10 lbs. (4.5 kg)

Shipping Weight (includes packing, crating, and pallet)

MVR Degausser: 165 lbs. (75 kg)

MVR-HDD Destroyer – 110 volts: 325 LBS (147 kg)

MVR-HDD Destroyer – 220/230 volts: 345 LBS (156 kg)

Shipping Dimensions

31″ Wide x 36” Deep x 55” High (78.4 cm x 91.4 cm x 139.7 cm)

Power Requirements (voltage/frequency/current)

See the label on the rear of your machine for factory settings

110±10% VAC, 50/60 Hz 15 Amps. Or 230±10% VAC, 50/60 Hz 15 Amps (factory configured). Includes universal power input with auto-sensing at 110-230V /50-60hz for the Degausser.

Current Drawn

8 Amps (peak) at 110-120 Volts A.C., 1-phase, 50/60 Hz

9 Amps (peak) at 220-230 Volts A.C., 1-phase, 50/60 Hz

Power Cord Included

Length: 6 ft. (183 cm), 14 AWG, 2 Pole-3 wire grounding: C13/C14 three-prong grounded (IEC 60320) or equivalent global-region standard per request.

Ambient Operating Temperature

40 – 100 °F (4 – 37.8°C)

Media Sanitization Modality

Degauss uses a magnetic flux field of 2.0 Tesla minimum and crushes with 20 tons of force that can only be achieved by our proprietary hydraulic power module.

Acceptable Media

HDD and Enterprise HDD (includes HAMR, MAMR, EAMR, and Hybrid).

Media Sanitization Throughput

120 Drives per hour

Deployment/ Transportability

The first and only Degausser and Crusher in One – Fully degauss and crush with rack mounted on retractable slide tracks in EIA standard server rack.

Machine Control/ Monitoring

Easy to read and navigate touch screen display provides comprehensive system data. Designed to verify and crush after a successful degauss, ensuring each cycle is successful, guaranteeing its performance. Optional Secure Scanner reads and logs barcodes.

Media Feeding

Gravity-assisted, top-loaded manual feed port for inserting one device at a time. 4” (102 mm) x 6” (152 mm) x 1” (25 mm) Typically, one full-size HDD or two laptop HDDs

Debris Collection

Locked, secure debris collection drawer that holds up to 25 destroyed HDDs; can only be opened by an authorized operator with an access code.

Jam/Unjam

Automatic unjam and restart, or user-initiated unjam cycle, as well as manual unjam.

Safety

Completely automatic, hands-off operation. Will not operate if lock-out doors are not entirely closed, preventing hands or pieces of clothing from being carelessly caught in the machine’s moving parts. The user never has to touch potentially dangerous debris.

Maintenance/ Longevity

Crushing plates never need replacing.

Technical support

On-call technical support service department; nationwide and international technical support teams can be deployed when required repairs or maintenance.

Compliance

OSHA workplace compliant for quiet and safe operations. CE and GMA compliant.

Key Features & How They Benefit
