DIN 66399 Class 3 Compliant
NIST SP 800-88 Compliant
HIPAA Compliant
GDPR Compliant
PCI DSS 3.2 Compliant
Designed with NSA Guidelines
Environmentally Friendly
Businesses worldwide use credit and debit card information to process transactions on point-of-sale (POS) registers, laptops, tablets and phones.
What happens when companies upgrade equipment and must dispose of old technology? Leaders must follow PCI DSS 3.2 Data Security Standards to destroy media and eliminate traces of card numbers. Phiston Technologies offers a range of equipment for PCI-compliant data destruction.
What the PCI DSS 3.2 Standard Requires of Companies
The PCI DSS 3.2 Data Security Standard protects cardholders and their personal information. The standard requires businesses to assess their procedures for using and destroying media in an attempt to minimize fraudulent activity. Any company that accepts credit cards must follow the PCI DSS 3.2 Standard.
This standard has 12 guidelines for compliance:
- Organizations must have a firewall in place.
- Custom device passwords should be set.
- Businesses must safeguard credit card data by limiting access.
- Credit card data must be encrypted.
- Antivirus software needs to be installed.
- Businesses are to update their systems when patches are available.
- Restrict credit card data access to employees who need it for core job functions.
- Permit only authorized personnel to edit systems.
- Physical security measures must be in place.
- Organizations must monitor and track digital resources used to store card data.
- Security systems must be tested routinely.
- Leaders are to explain the appropriate uses of transaction hardware and software.
The Risks of Noncompliance
Ignoring the PCI DSS 3.2 Standard could result in fees from credit card companies. These fees grow more severe the longer an organization is noncompliant. Businesses could also face higher transaction fees in the future and frequently experience a sudden loss of customer trust.
Our PCI DSS 3.2 Compliant Solutions
Choose one of our PCI DSS data destruction solutions to keep your business in good standing.
MediaDice® All Media Disintegrator A2
The MediaDice® All Media Disintegrator A2 handles laptops, hard drives, solid state drives and related media. Feel confident that you are destroying media to the PCI DSS 3.2 Standard. Devices and drives placed into the A2 model end up in particles with a 2-millimeter nominal edge length.
Compliances
- NIST SP 800-88
- GMA, NIOSH, and OSHA workplace compliance.
- HIPAA
- Global Environmental Requirements
- GDPR
- PCI DSS 3.2
- HEPA filtration meets MRV8 air quality standards
- E6 to E7 level of destruction based on DIN 66399 for SSDs
- H6 to H7 level of destruction based on DIN 66399 for HDDs
- Global Safety and EMC Standards
Features
- 7″ Touchscreen provides security and operational control.
- Password-protected access for different user levels.
- Automatic jam recovery
- Advanced disintegrator reduces media to particles of 2mm nominal edge length or less.
- Magnetic separator simplifies metal recycling.
- Cycle counter monitors usage and maintenance requirements.
- Floor-mounted design with leveling and mobility features.
Compatible Media Types
- Hard Drives (HDD, Enterprise HDD, HAMR, MAMR)
- Switches and Circut Boards
- CDs/DVDs
- Laptops, Tablets, Cell Phones
- Solid State Drives (Enterprise SSD)
- USBs/Flash Drives
- Credit Cards/ID Cards
Dimensions/Weight
Dimensions:
- 70” (178cm) Wide (front left to right)
- 51” (130cm) Deep (front to the back of the machine)
- 75” (191cm) Height (floor to top of the machine)
Weight (excludes packing and crating)
- 3,417 lbs./ 1,550 kg. max.
Power Requirements (voltage/frequency/current)
See the label on the left side of your machine for specific factory settings
- 400-480 Volts A.C. industrial power, 3-phase, 50/60 Hz, 50 – 100 Amps., connected to the electrical panel using supplied 4 AWG wire. UL and IEC panel and electrical components for safety.
MediaDice® SSD Disintegrator-2C
Tackle high-volume media destruction projects using the MediaDice® SSD Disintegrator-2C model. This machine moves through upward of 400 SSDs in an hour, making it a key tool for data centers in the U.S. and abroad. Choose the 2C model, which moves through SSD batches of 25 units.
Compliances
- Global Environmental Requirements
- HIPAA
- GDPR
- Global Safety and EMC Standards
- GMA, NIOSH, and OSHA workplace compliance.
- GMA, NIOSH, and OSHA workplace compliance
- NIST SP 800-88
- PCI DSS 3.2
Features
- Enhanced gearbox engineered for processing enterprise-grade SSDs.
- Disintegrates up to 240 SSDs every hour.
- Proprietary knife mill design ensures media is pulverized to a particle size of 2mm x 2mm or less.
- Hinged screen allows easy and safe operator access for debris inspection.
- Hands free operation
- Equipped with casters and adjustable feet for easy relocation and stable setup.
- Eliminates the need to remove aluminum casings
- Integrated counter tracks destroyed media volume and maintenance intervals.
Compatible Media Types
- SSDs
- Enterprise SSDs
- Circuit Board
- Cell Phones
- USBs/Flash Drives
- CDs/DVDs
- Credit/IDs Cards
Dimensions/Weight
Dimensions:
- 45.3″ (115 cm) Wide (front left to right)
37.8″ (95 cm) Deep (front to the back of the machine)
50″ High (127 cm) Height (floor to top of the machine)
Weight (excludes packing and crating)
- 1250 lbs. (567 kg)
Power Requirements (voltage/frequency/current)
See the label on the left side of your machine for specific factory settings
- 200-240 Volts A.C., 3-phase, 50/60Hz, dedicated 30 Amps circuit recommended.
- 380-460 Volts A.C., 3-phase, 50/60 Hz, dedicated 20 Amps circuit recommended.
MediaDice® Combo Disintegrator
Place our MediaDice® Combo Disintegrator inside your warehouse or data center to destroy 1,000+ HDDs or 7,200+ SSDs per hour. HDDs are broken into 20-millimeter sections, and SSDs are cut into 5-millimeter particles. This model is the ultimate device for high-volume media shredding events.
Compliances
- H5 to H6 level of destruction based on DIN 66399 for HDDs
- E4 to E5 level of destruction based on DIN 66399 for SSDs
- Global Safety and EMC Standards
- Global Environmental Requirements
- GMA, NIOSH, and OSHA workplace compliance.
- HEPA filtration meets MRV8 air quality standards
- NIST SP 800-88, HIPAA, GDPR, and PCI DSS 3.2
Features
- Integrated 7″ LCD touchscreen for easy control of security access and operations.
- Password-protected access for user, administrator, and service functions.
- Capable of processing over 1,000 HDDs per hour (down to 20mm strips) or 7,200 SSDs per hour (down to 5mm pieces).
- Cycle counter to monitor media destruction volume and schedule maintenance.
- Automatic jam recovery system to minimize downtime.
- Floor-mounted with leveling feet and built-in casters for easy relocation and stability.
Compatible Media Types
- Hard Drives (HDD, Enterprise HDD, HAMR, MAMR)
- Solid State Drives
- Tablets
- Switches/Circut Boards
- Cell Phones
- USB/Flash Drives
- CDs/DVDs
- Credit/ID Cards
Dimensions/Weight
Dimensions:
- 53” (134cm) Height (floor to top of the machine)
- 74” (187cm) Length (front left to right)
- 30” (76.5cm) Width (front to the back of the machine)
Weight (excludes packing and crating)
- 2,800 lbs./ 1,270 kg.
Power Requirements (voltage/frequency/current)
See the label on the left side of your machine for specific factory settings
- 400-480 Volts A.C. industrial power, 3-phase, 50/60 Hz, 50 Amps., connected to the electrical panel using supplied 4 AWG wire. UL and IEC panels and electrical components are for safety.
MediaDice® High Thru-Put SSD Destroyer
Our MediaDice® High Thru-Put SSD Destroyer keeps you moving efficiently by destroying 1,200 SSDs per hour. These machines break down SSD components into 5-millimeter particles and are compatible with aluminum and plastic SSD casings.
Compliances
- CE certified, NIST SP 800-88, HIPAA, GDPR, PCI DSS 3.2
- E5 level of destruction based on DIN 66399 for SSDs
- Global Safety and EMC Standards
- Global Environmental Requirements
- GMA, NIOSH, and OSHA workplace compliance.
Features
- Rapidly disintegrates over 1,200 SSDs per hour (approximately 1 every 3-4 seconds).
- Hands-free operation with touchscreen control, automatic jam detection, and locked debris drawer.
- Available in 110V single-phase or 220V three-phase for optimal performance.
- Compact footprint (30″ x 25″ x 38″) suitable for office, colocation, or data center environments.
- Integrated cycle counter and hour meter for proactive maintenance planning.
- Optional compatibility with Phiston’s MediaVision® Scanner
Compatible Media Types
- SSD (Enterprise SSD)
- Tablets
- Cell Phones
- Circuit Board
- USBs/Flash Drives
- CDs/DVDs
- Credit/IDs Cards
Dimensions/Weight
Dimensions:
- 38” (96.5 cm) x 30” (76.2 cm) x 25” (63.5 cm) (H x W x L)
Weight (excludes packing and crating)
- 295 lbs (134 kg) – 220-volt model (max)
Power Requirements (voltage/frequency/current)
Factory configured for any international power supplies.
110 Volts A.C ±10%, single-phase, 50/60 Hz, 15 Amps
220 Volts A.C ±10%, 3phase, 50/60 Hz, 7.5 Amps
Phiston Technologies PCI DSS Hard Drive Shredding Accessories and Services
Make your life easier with the following accessories:

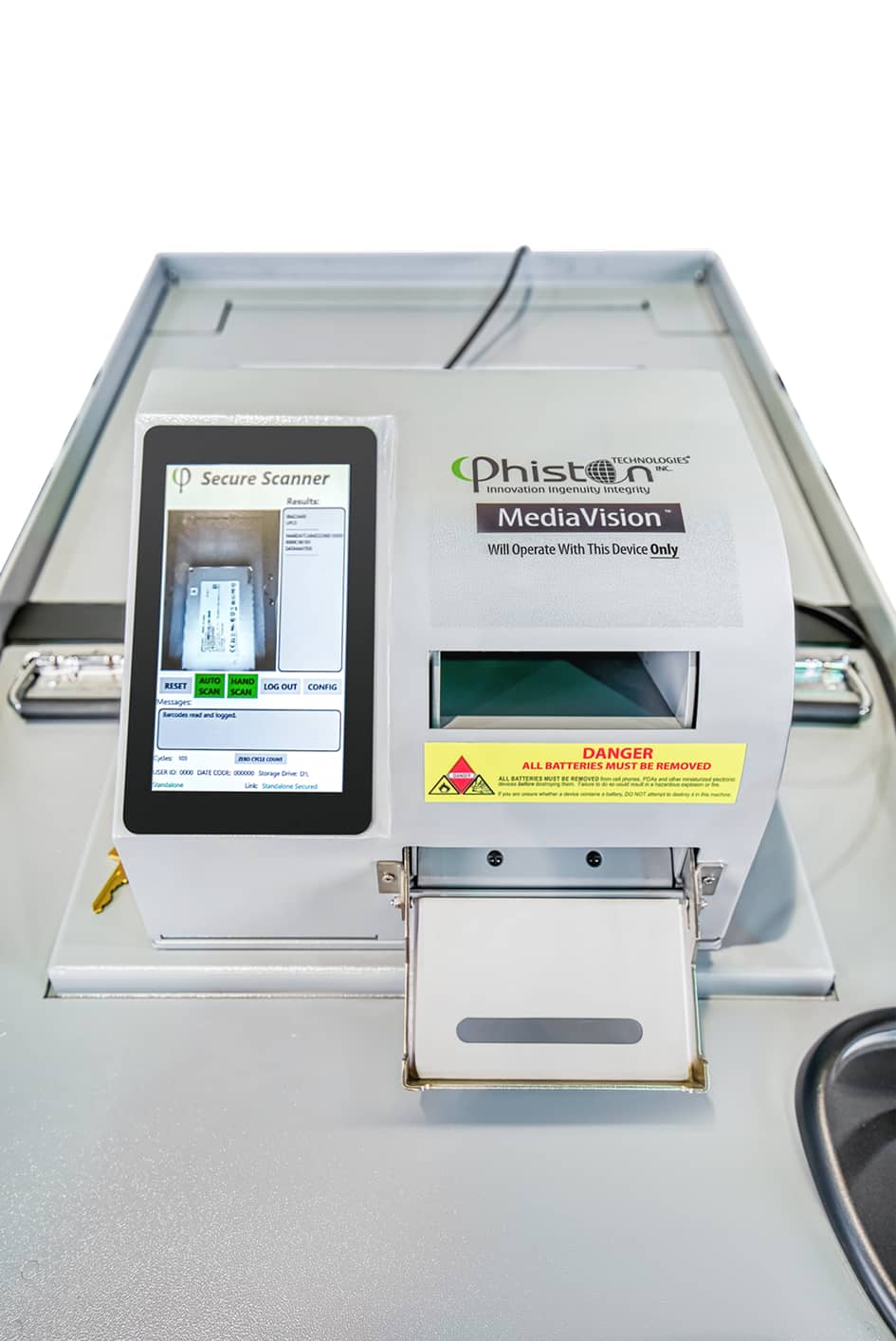

MediaVision® Scanner
Log the barcodes on hard drives prior to destroying them for improved recordkeeping.
Features
- Hands-free scanning of all hard drive barcodes
- Effortlessly manage device functions with the intuitive touch screen interface.
- The scanner captures the disk, scans barcodes, and securely transfers it to the crusher.
- In case of a read failure, the disk is automatically ejected and not logged as received.
- A comprehensive data log (user, cycle count, RFID ID, processing method, and levels) is saved to a USB storage device.

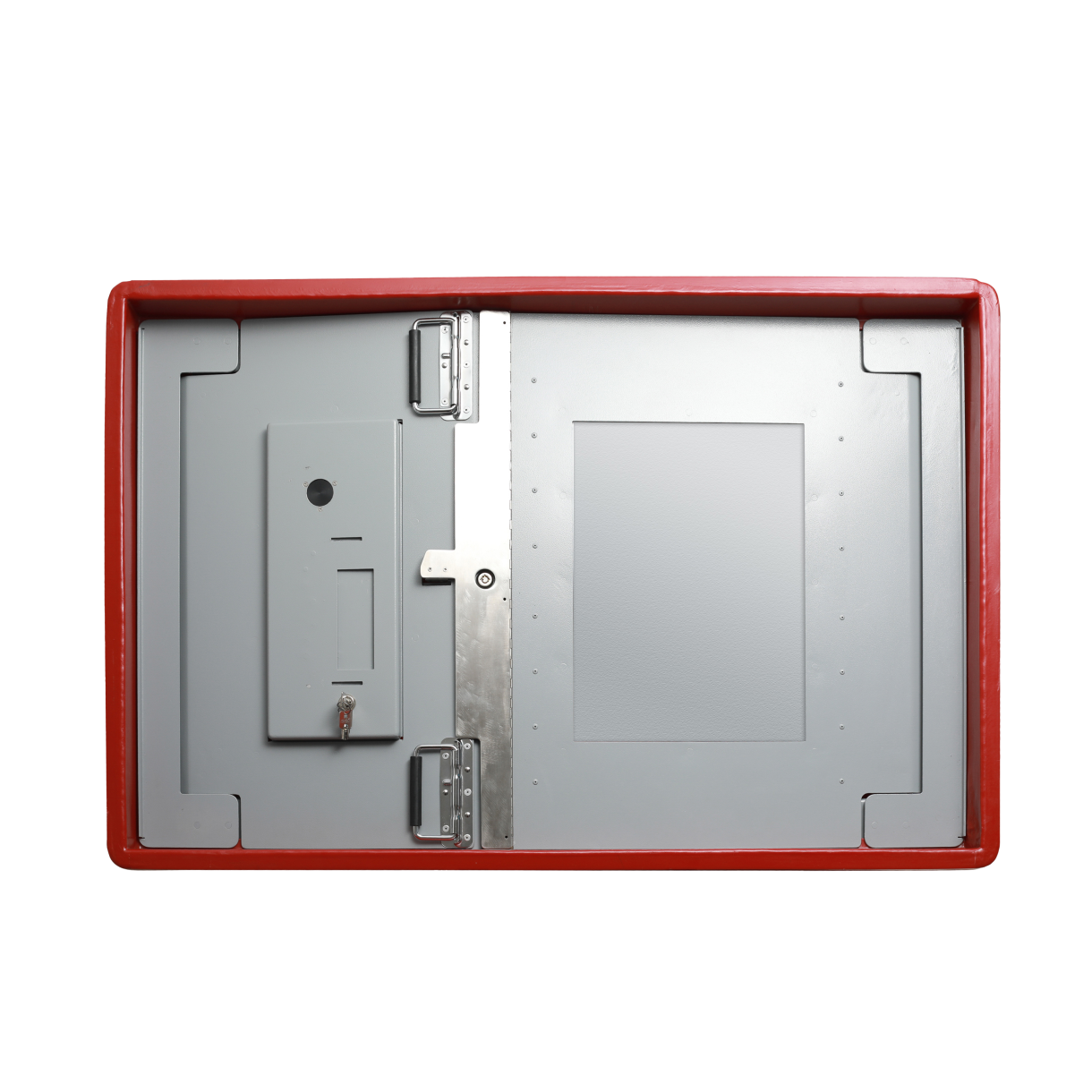

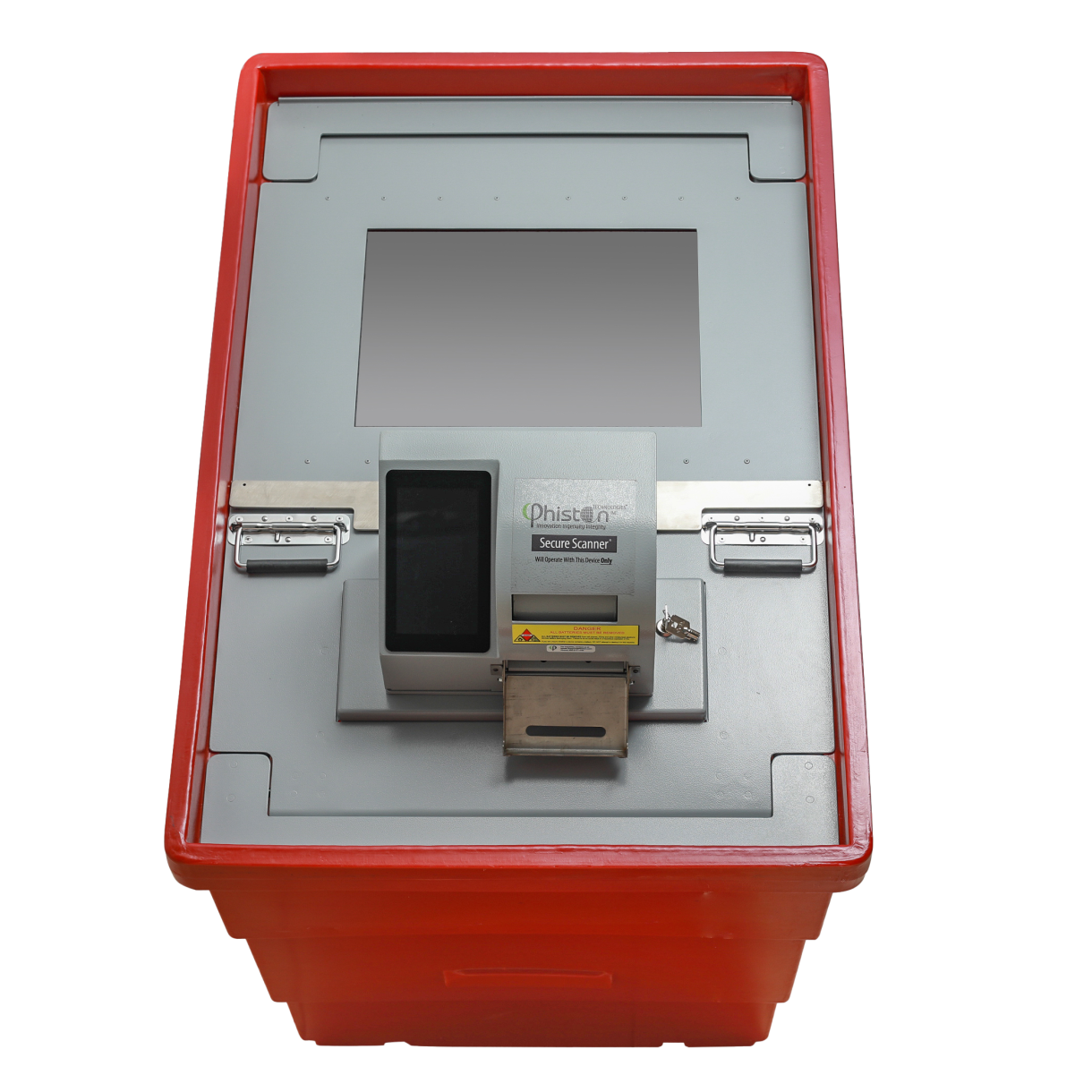

MediaVault® Bin
Place hard drives inside a tamper-proof bin to keep data away from unauthorized personnel.
Features
- Materials are easily viewed through the plexiglass window.
- The 6-wheel caster design allows for easy movement.
- An optional scanner can be added to the top.
- The tamper-proof, lockable lid prevents unauthorized access.

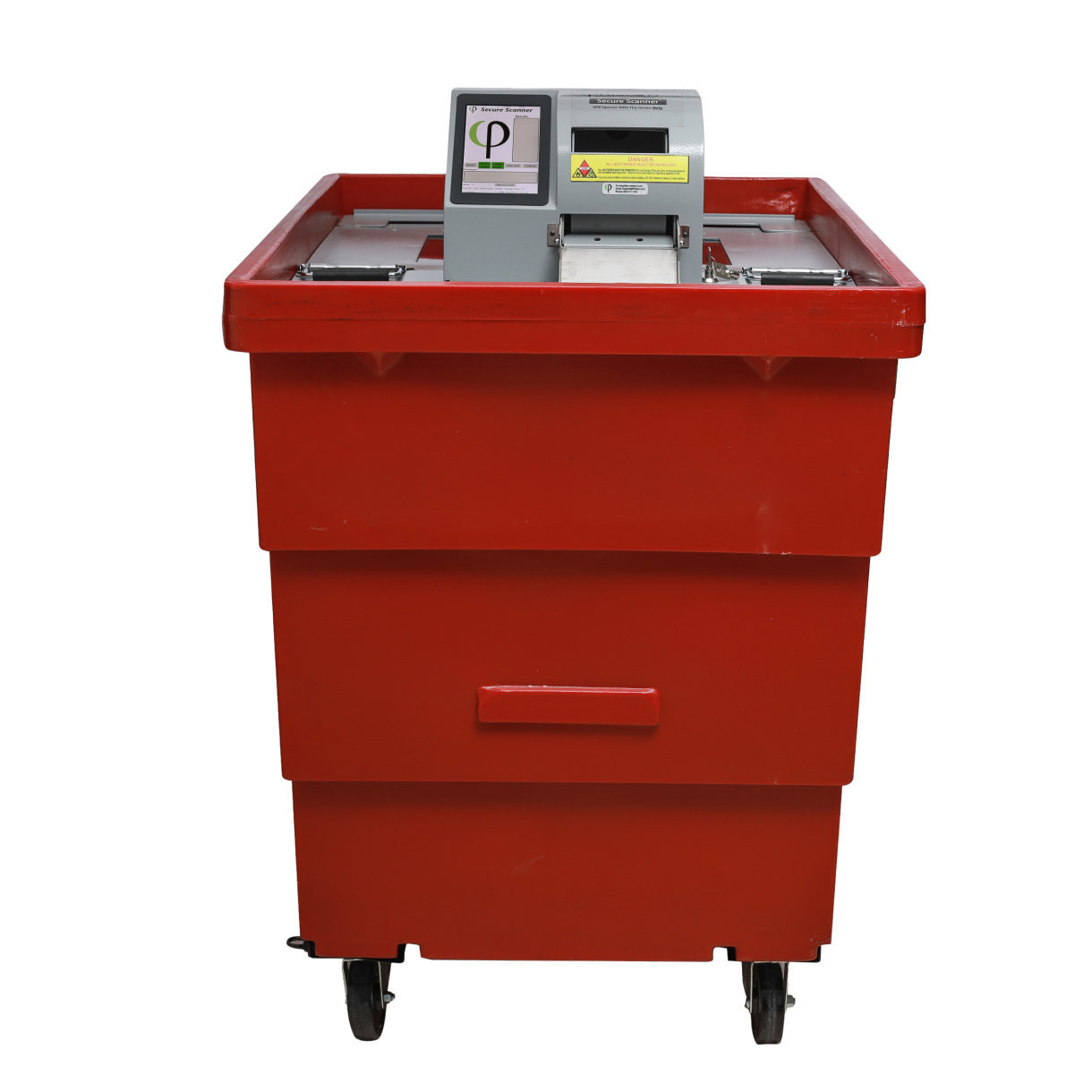

MediaVault® Adjustable Bin
Get all the benefits of the standard bin with the option to move units up and down.
Features
- Effortlessly raise or lower the bin with the hydraulic lift.
- The 6-wheel caster design provides excellent maneuverability.
- Materials inside are easily visible through the plexiglass window.
- Add an optional scanner to the top for enhanced functionality.
- A tamper-proof, lockable lid secures the contents, preventing unauthorized access or removal.
Are you interested in having a group of experts take care of PCI DSS Hard Drive destruction tasks for you? Remember Phiston Technologies for mobile media destruction services. We keep your company’s data safe by showing up to your workplace in 24-foot box trucks featuring MediaDice® All Media Disintegrator A2 models inside.
Why Phiston Technologies for PCI-Compliant Data Destruction Machines?
Phiston Technologies is known for:
- Environmentally friendly media destruction
- Devices used in all 50 states and over 55 countries
- Media destruction technology used by several Fortune 500 companies
- USA-made products
- Automation options
- 15+ years of experience
Get a Quote for Our Media Destruction Solutions
Phiston Technologies wants to help you operate according to the PCI DSS 3.2 Standard.
Complete our contact form to receive pricing details.
